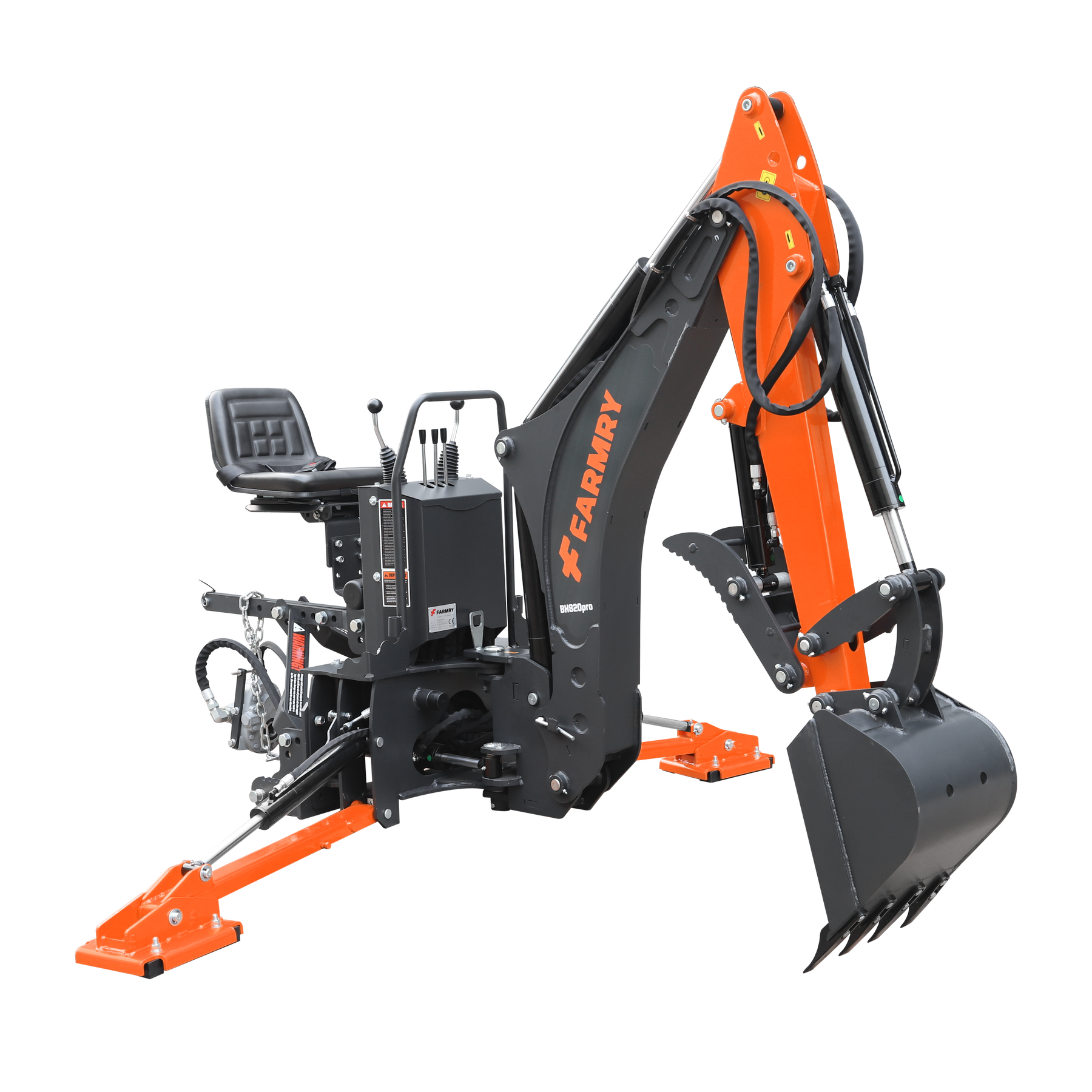

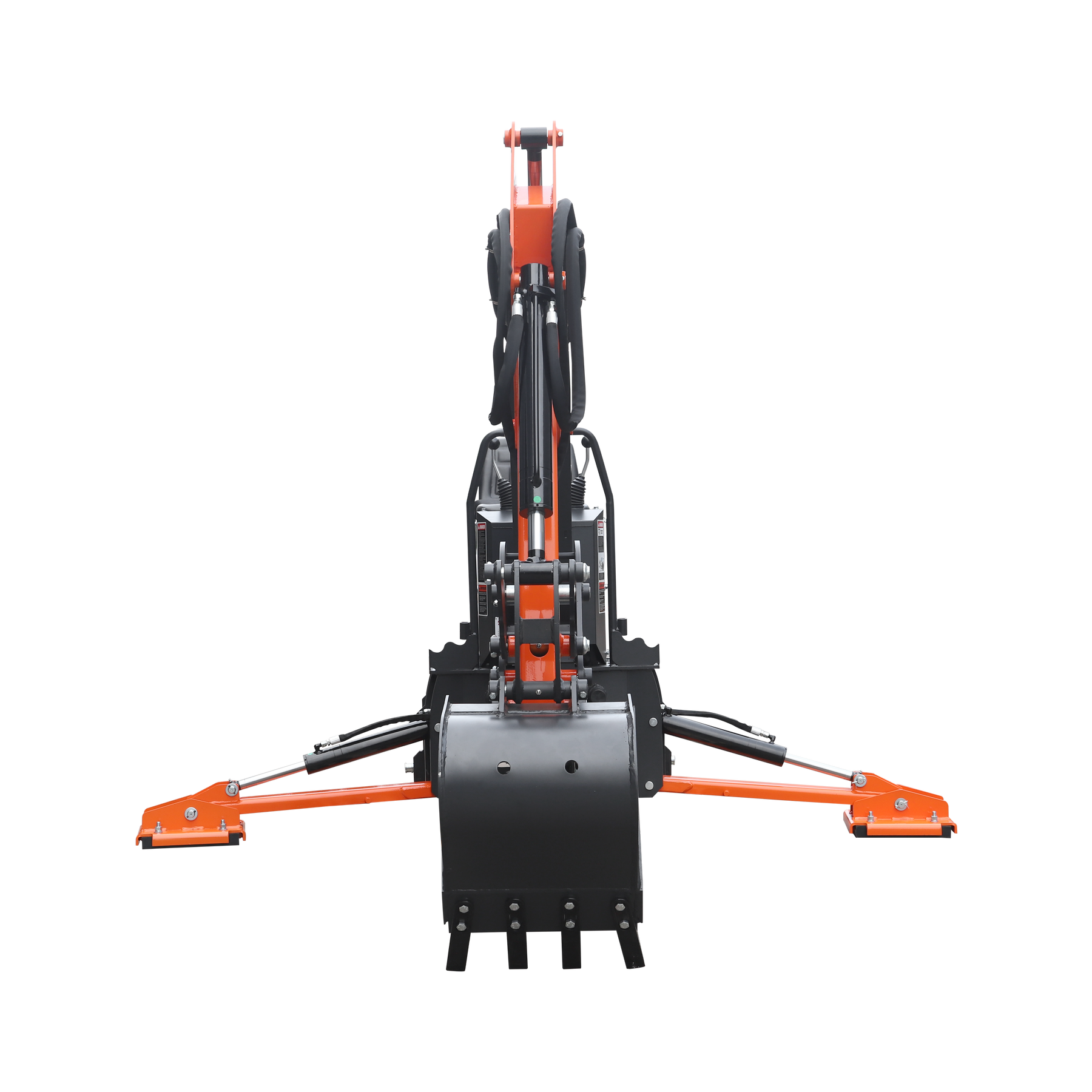

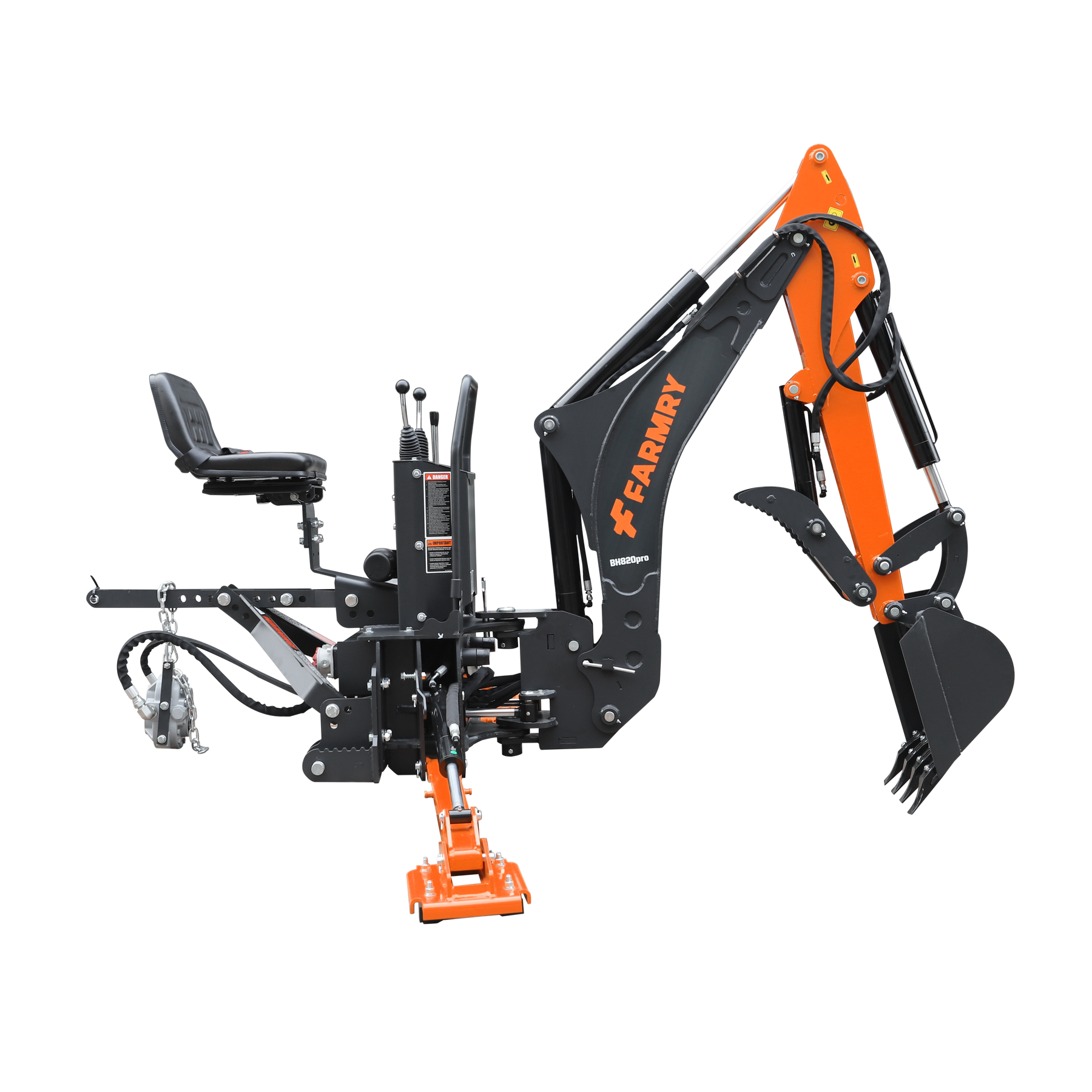

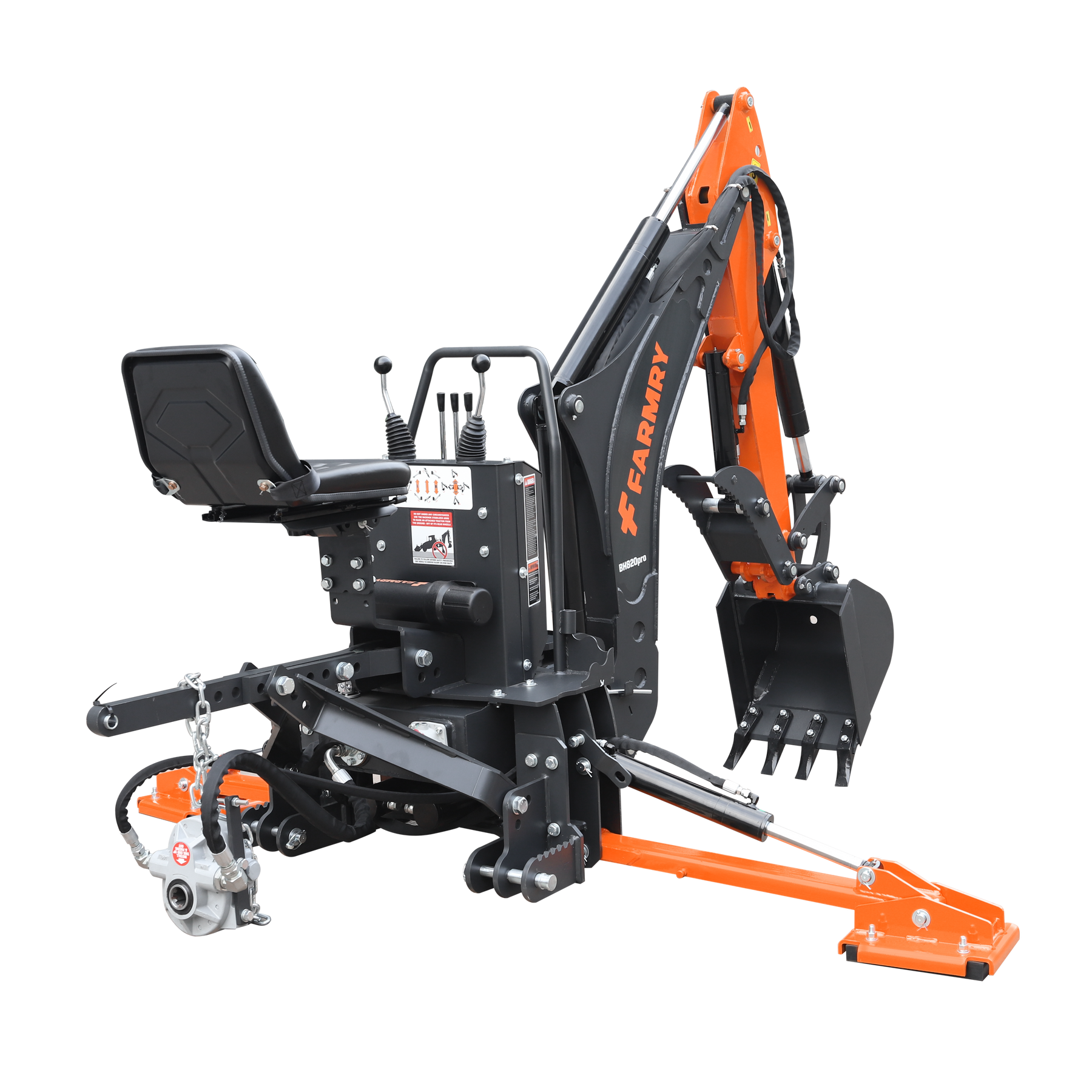

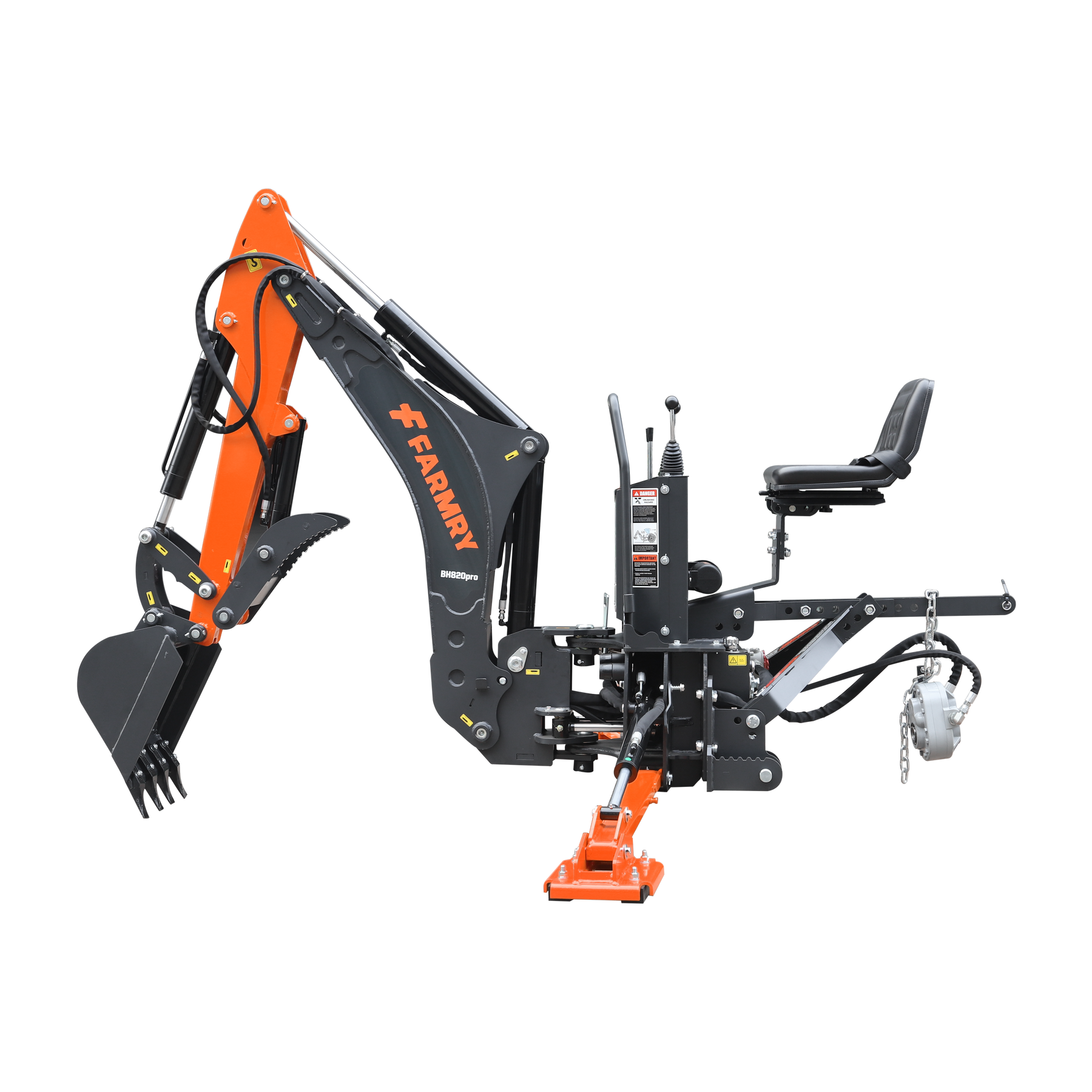

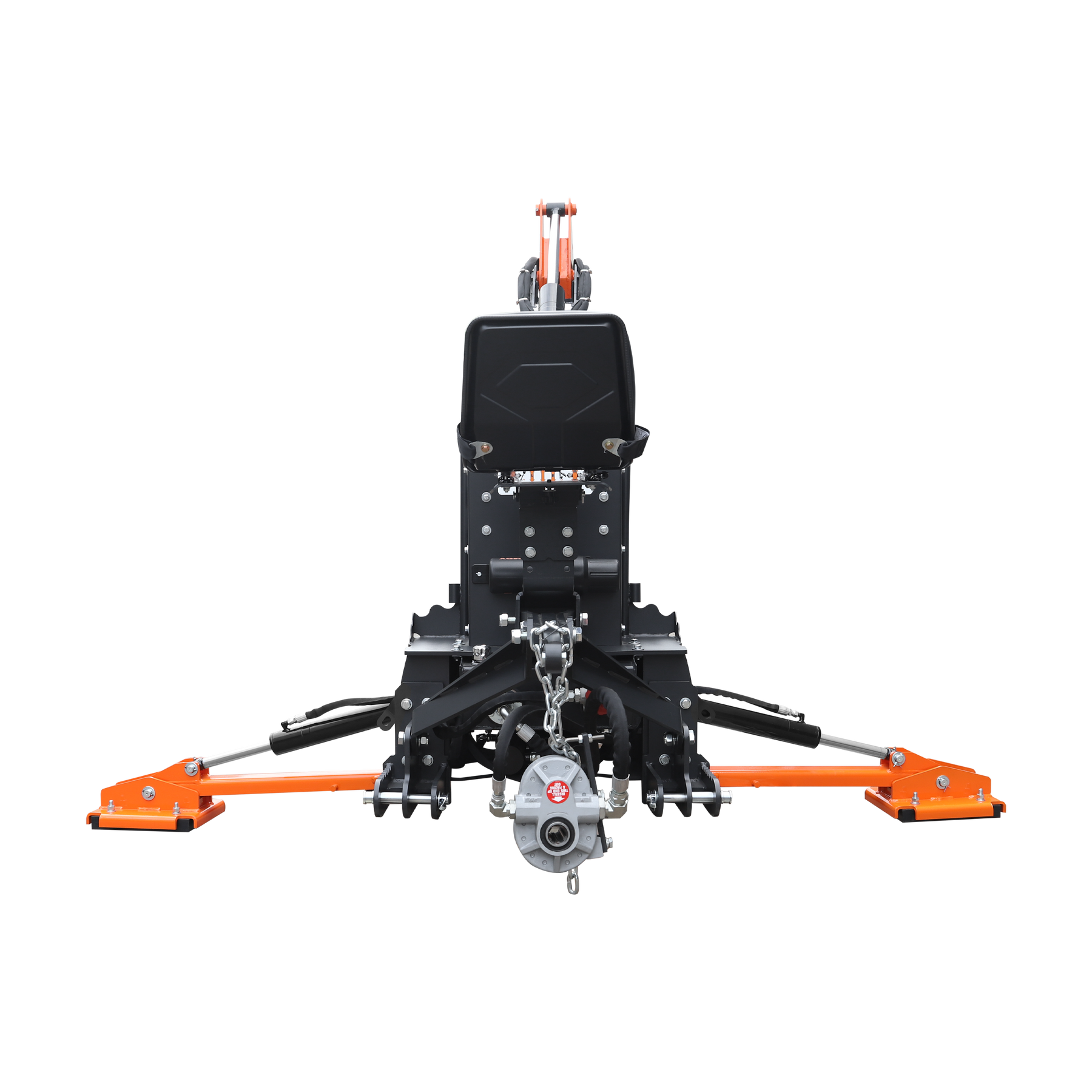

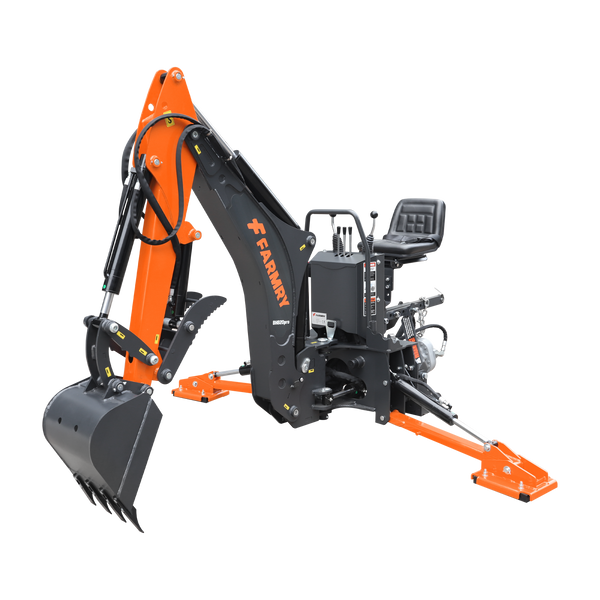

8'2" Tractor Backhoe with Curved Boom, Italian Original WALVOIL Seven Way Hydraulic Control Valve, 15" Bucket, Hydraulic Grapple Thumb, Self-Contained One-Piece Gear Pump&Hydraulic Reservoir included, for 30-65 HP, Cat 1&2 Hookup, BH820Pro

+ Show More

SKU: 102110A | Model: BH820Pro

8'2" Tractor Backhoe with Curved Boom, Italian Original WALVOIL Seven Way Hydraulic Control Valve, 15" Bucket, Hydraulic Grapple Thumb, Self-Contained One-Piece Gear Pump&Hydraulic Reservoir included, for 30-65 HP, Cat 1&2 Hookup, BH820Pro

Name: 8'2" Tractor Backhoe with Curved Boom, Italian Original WALVOIL Seven Way Hydraulic Control Valve, 15" Bucket, Hydraulic Grapple Thumb, Self-Contained One-Piece Gear Pump&Hydraulic Reservoir included, for 30-65 HP, Cat 1&2 Hookup, BH820Pro
Brand: Farmry
SKU: 102110A
Price: 5499.0 USD
Availability: InStock
Rating: 4.2 (5 reviews)

$5,499.00

$6,699.00

Save $1,200

FREE SHIPPING

Next U.S. Batch Arrives May 20

Learn More

Digging depth: 8'4"

8'4" 9'4" 7'

Availability: Next U.S. Batch Arrives May 20

Payment:

High Demand — Orders placed today will ship after the May 20 U.S. arrival.

Ships from U.S. Warehouses (NC / NJ / TX / CA) Learn More

12-Month warranty included

4.6★ Verified Customer Reviews

U.S.Based Support

Product Overview

Engineered for 30–65HP tractors, this compact 3-point hitch backhoe offers a max digging depth of 8′4″ with additional compact bucket sizes available. Fitted with an Italian-manufactured hydraulic control valve, it delivers high-quality, reliable operation. Its curved boom protects the backhoe from unnecessary damage and stops soil from falling back into excavated holes, while dual cylinders provide strong, consistent movement across the full 180-degree range. All pivot points have greasable pins for easy maintenance, and main pivot points feature hardened steel bushings to reduce wear. Easy-to-use hydraulic stabilizers prevent tipping; replaceable bucket teeth enable quick swapping of worn/damaged ones for minimal downtime. Rubber pads cushion the boom to a controlled stop when swung to extreme ends, and rubber footpads on stabilizers keep their teeth from tearing up driveways.

Product Manual

BH(S) Series Backhoe Product Manual 1.0

Parts Manual

BH-Pro Backhoe Parts List

Product Features

Powerful Design

Farmry backhoe attachments are precision-engineered for optimal size-weight-power balance—light for easy on-site handling, setup, and repositioning, yet strong for trench digging and heavy debris moving. Contrary to the "heavier = more durable" myth, excess weight strains tractor frames, accelerating wear.
Farmry boosts performance with CNC laser-cut components (precise fit), precision welding (uniform strong bonds, no weak points), and optimized structural design (even load distribution). This premium build delivers ideal weight-rigidity balance, protecting tractors while maintaining toughness for long-term reliability.

Italy Made Hydraulic Control Valve

Farmry PRO series feature Italian-made Walvoil hydraulic control valves (https://www.walvoil.com/). Part of Interpump Group with 50+ years in fluid power, Walvoil is a pioneer in hydraulic innovation and mechatronic integration, with core strengths in technological excellence, quality assurance, and global responsiveness.
ISO 9001/14001 certified, it ensures top production precision and environmental responsibility. Its global branch network and tailored solutions enable rapid responses to agriculture, construction, and mining sector needs.

Three-Point Hitch

You can easily convert your tractor into a backhoe using a straightforward 3-point hitch mounting setup—and this 3-point hitch further leverages your tractor’s draw bar to boost overall rigidity, ensuring stable operation.

Curved Boom

A curved boom backhoe features an excavator-style curved boom that offers improved digging efficiency, greater clearance over obstacles, and better visibility of the trench and bucket compared to traditional straight booms. This design allows for deeper digging without damaging the excavation's edge and provides more clearance when loading trucks

Dual Swing Cylinders

The dual cylinders deliver strong, consistent movement across the full 180-degree range, letting you dig into even tight spots and dump dirt exactly where you need it

Hardened Steel Bushings

Backhoe pivot points (pins and pin bosses) wear under high loads, causing loose, rattling boom/dipper/bucket—a common issue for backhoes/excavators. Replacing only worn pins won’t restore performance—pin bosses wear too.
Farmry solves this with replaceable bushings pressed into pin bosses: swapping pins and bushings returns the backhoe to original condition, protecting your investment (no permanent boom slop without this feature). Ordinarily exclusive to standalone units, this feature is standard on all Farmry backhoe attachments.

Replaceable Teeth

Our bucket teeth allow you to swap out worn or damaged teeth and get back to work as soon as possible.
PICTURE FOR REFERENCE ONLY

Swing Cushioning

When swinging the boom to the extreme ends, rubber pads cushioning gracefully brings the boom to a controlled stop. Thus, it can provide the maximum protection during the equipment's left-to-right operation.

Rubber Footpads

Keep the stabilizer teeth from tearing up your lawn, blacktop, and concrete.

Grapple Thumb (Mechanical）

The grapple thumb is highly versatile for handling rocks, tree limbs, and brush. The mechanical type demands manual positioning: the operator lowers the thumb and inserts a pin to lock it in place.

JIC Style Hose Fittings

JIC (Joint Industrial Council) style hose fittings boast a 5000 psi pressure rating. When hydraulic hose replacement is needed, these fittings are typically easy to source—plus, they eliminate the hassle of dealing with mismatched joint threads.

Smooth Hydraulic Controls

All Farmry backhoe attachments integrate a hydraulic pump and tank, eliminating reliance on the tractor’s hydraulics. This design delivers optimal flow/pressure at 540 RPM PTO for smooth valve operation, resolving compatibility issues of conventional models—due to varying tractor hydraulic specs, flow/pressure inconsistencies are common with traditional setups.
PICTURE FOR REFERENCE ONLY

Integrated Iron-Pump

For PTO and PTO PRO, Farmry backhoe attachments are equipped with an extremely reliable intergated pump made from high strength cast iron. These pumps are equipped with an internal spline and are made to slide right onto the 1-3/8″ spline of your tractor.

specifications

Which One is Right for You?

POWER TYPE	FAMILY	PRODUCT	MIN HORSE POWER	CATEGORY	MIN TRACTOR / SKID STEER WEIGHT	MIN WHEEL BASE
PTO	600 SERIES	BH600	18	1	1800 lbs	57"
700 SERIES	BH700	25	1 or 2	2400 lbs	60"
BH700.PRO
BH700.E
820 SERIES	BH820	30	3000 lbs	70"
BH820.PRO
BH820.E
920 SERIES	BH920.PRO	45	2	4000 lbs	77"
Skid Steer	700 SERIES	BHS700.PRO	30	Skidsteer Mount	2600 lbs	NA
820 SERIES	BHS820.PRO

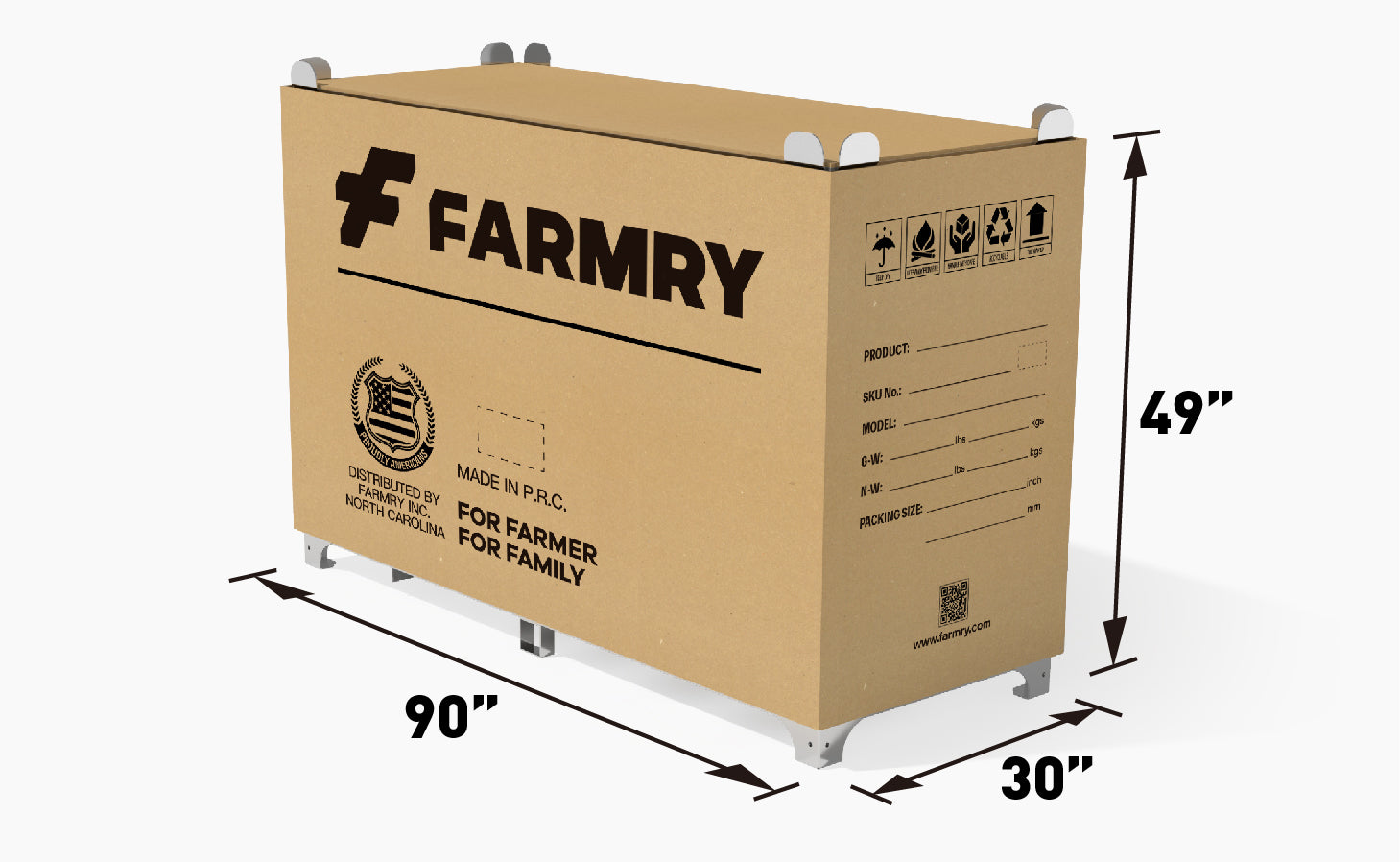

Shipping Information

Warranty Information

Video

Reviews & Questions

The stability is incredible. Even when you're putting a lot of force on it, the whole unit feels planted and secure. That confidence is priceless when you're working.

The price point for this level of performance is unmatched. I compared it to all the major brands, and the BH820PRO offered the best value by a long shot.

This is a professional-grade tool. The digging depth and power are phenomenal, allowing me to take on bigger projects myself instead of hiring out. It has saved me a ton of money already.

The BH820PRO is an absolute beast. I recently dug the foundation for a new barn extension, a job I would have had to hire out!

From order to delivery, the experience was flawless. The product was well-described, and it arrived on time and ready to work.

FAQs

Is this backhoe equipment right for my tractor, or do I need a full loader backhoe machine?

Yes—if you run a 30–65 HP tractor. The BH820 Pro is a 3-point backhoe attachment with a self-contained hydraulic system, so it doesn’t rely on the tractor’s hydraulics. You get core backhoe features—curved boom, strong digging performance, hydraulic thumb—for far less money than a full loader backhoe. Pair it with your front loader for loading and material handling on the jobsite; choose a full backhoe loader only if you need an all-in-one machine for constant roading between projects or heavier construction duty.

What tasks can this model handle versus larger equipment or excavators?

This compact model is built for many applications: trenching, landscaping, light demolition, stump/rock handling with the thumb, scraping and small excavation jobs. It excels where access is limited, site weight is a concern, or a nimble configuration saves time. A full-size excavator or larger equipment may out-lift and out-reach it, but the BH820 Pro wins on efficiency, transport, and cost. Result: strong performance for residential projects, farm/acreage applications, and utility digs without the overhead of renting bigger models.

How does the digging bucket, bucket rotation, and attachments impact real-world capability?

The included 15″ digging bucket with replaceable teeth supports clean trench walls and spoil placement. 180° bucket rotation aids dumping and control in tight spaces, while the curved boom and dual-cylinder swing improve accuracy. Additional bucket sizes are available to match different trench specs.

How to check if the PTO extender needed or not if purchasing tractor powerer backhoe?

For the backhoe models compatible with certain tractor versions (BH600, BH600 PRO, BH700, BH700 PRO, BH820, BH820 PRO, BH920, and BH920 PRO), interference may occur during installation between the PTO pump and the tractor, preventing full engagement with the tractor’s PTO shaft (see left figure below).
When purchasing the above models, please pay close attention to the following:

1. Ensure there is sufficient clearance around your tractor’s PTO shaft (as shown in the right figure below, with a dimension of 7-3/4").

2. Please refer to the following dimensional specifications of the PTO pump to verify compatibility with the PTO shaft area on the rear of your tractor.

3. The PTO pump cannot be installed if any components are located within the shaded area of the pulley pump (dimensions: 160×224 mm / 6.3×8.8 inches) when mounting to the tractor’s PTO shaft area.
If insufficient clearance exists due to the above conditions, a PTO driveline extender will be required.(see above right picture)
This can be purchased on the Farmry website or at most agricultural equipment dealers.

Max Digging Depth	8'4"
Digging depth (2 ft. flat bottom)	8′2″
Overall Operating Height（Fully Raised）	116″
Reach from Swing POST	128″
Loading Height（bucket at 60°rotation）	71″
Transport Height（with boom fully retracted）	78″
Transport Overhang	50″
Ground Clearance	10.5″
Stabilizer Width	93″
Stabilizer Width（Transport）	65″
Engine HP Range（Tractor）	30-65 HP
Main Boom Cylinder Diameter	2.8"
Dipper Cylinder Diameter	2.8"
Bucket Cylinder Diameter	2.4"
Thumb Cylinder Diameter	2.0"
Number of Swing Cylinder	2
Swing Cylinder Diameter	2.4"
Stabilizer Cylinder Diameter	2.0"
Tank Capacity	3.2 Gallon
Pump Flow Rate	7 GPM
Bucket Rotation	180°
Swing Arc	180°
Dipper Boom Digging Force	2120 lbs
Bucket Digging Force	3220 lbs
Weight W/bucket	1140 lbs
Shipping Weight	1345 lbs

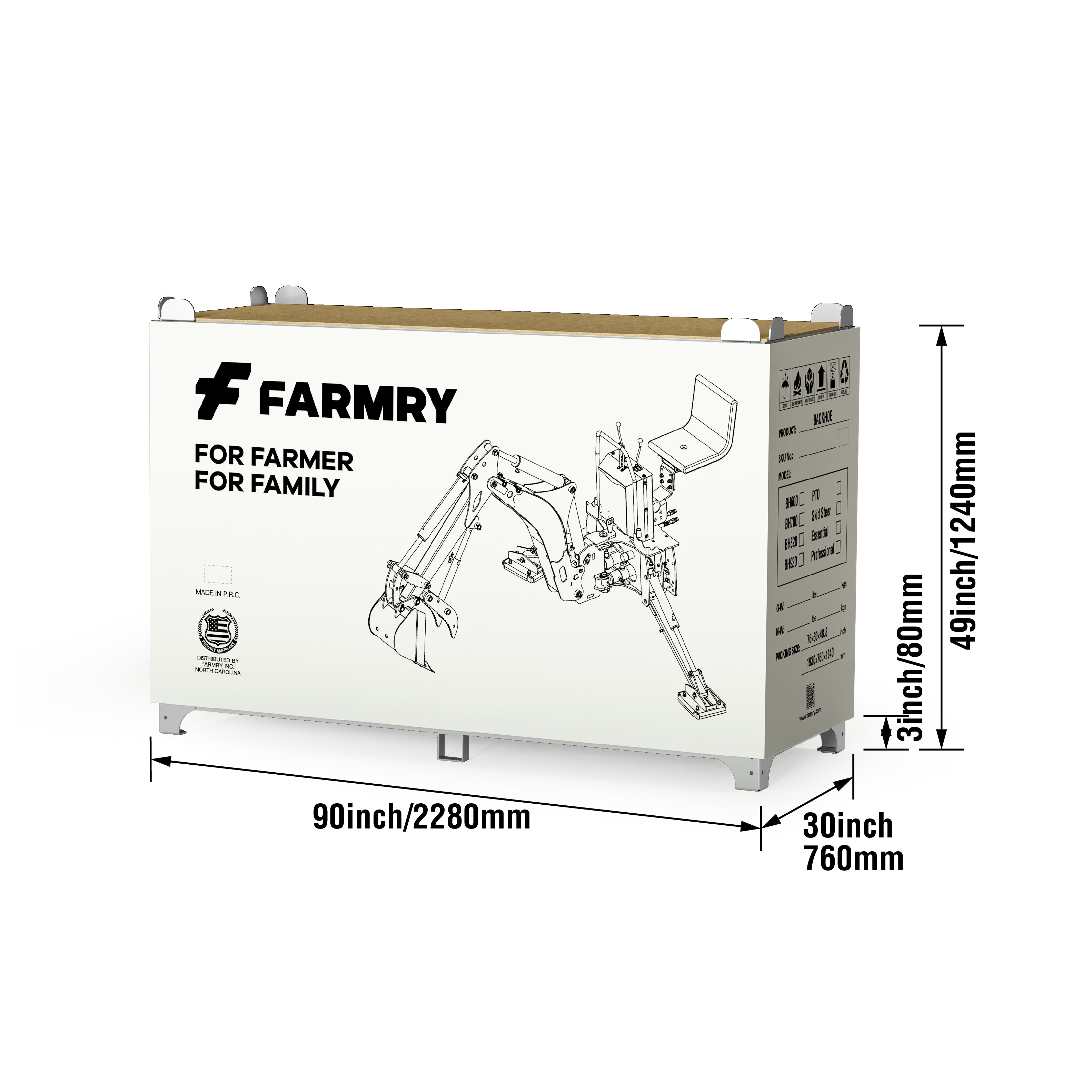

Transport Dimensions（L×W×H）	90″×30″×49″
Operating Pressure	2320 psi
Mounting System	3-point Hitch CAT.I/II
