What jobs is this backhoe best suited for?

This backhoe attachment is ideal for trenching, cleaning drainage ditches, installing fence posts, and general property maintenance or light construction work.

The Farmry BH820e is an 8'2" backhoe with a curved boom, 15" bucket, mechanical grapple thumb, self-contained pump & reservoir, for 30-65 HP tractors, Cat 1 & 2 hookup—ideal for compact utility tasks.

The Farmry BH820e is an 8'2" tractor backhoe with a curved boom, 15" bucket, mechanical grapple thumb, self-contained gear pump & hydraulic reservoir, for 30-65 HP tractors with Cat 1&2 hookup.

The Farmry BH820e is an 8'2" tractor backhoe with curved boom, 15" bucket, mechanical grapple thumb, and self-contained hydraulic system, designed for 30-65 HP tractors with Cat 1&2 hookup.

Farmry 8'2" Tractor Backhoe BH820e, with curved boom, 15" bucket, mechanical grapple thumb, self-contained gear pump & hydraulic reservoir; fits 30-65 HP tractors, Cat 1&2 hookup.

The Farmry BH820e is an 8'2" backhoe with a curved boom, 15" bucket, mechanical grapple thumb, and built-in gear pump and hydraulic reservoir. It fits 30-65 HP tractors (Cat 1&2 hookup) and features orange/black design with seat and controls.

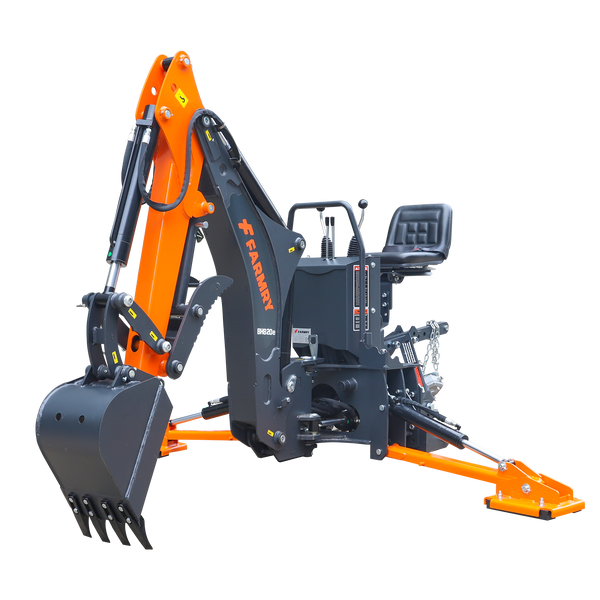

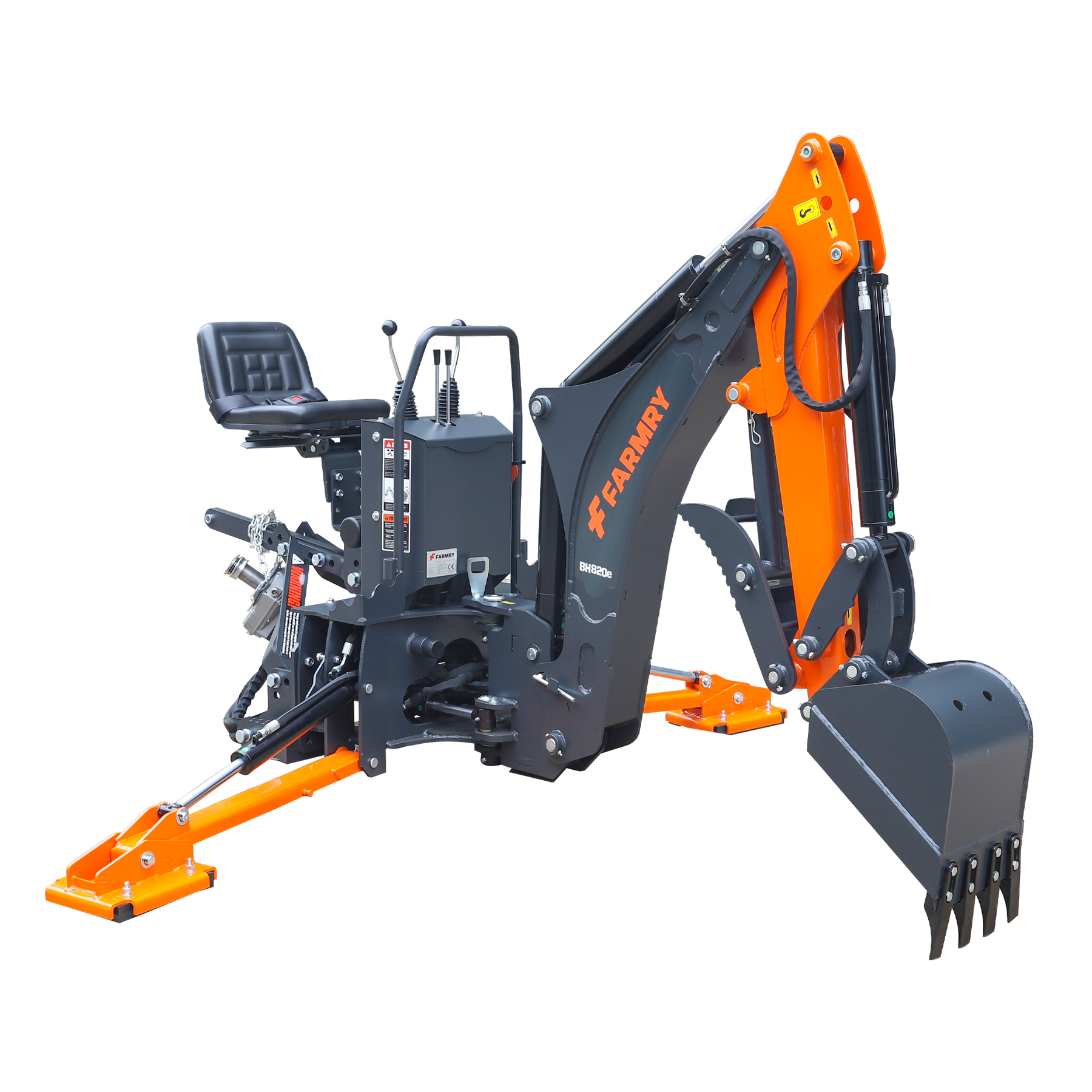

Front view of the Farmry 8'2" Tractor Backhoe BH820e with curved boom, 15" bucket, mechanical grapple thumb, black/orange frame, hydraulic hoses, fits 30-65 HP tractors with Cat 1&2 3-point hitch, self-contained pump & reservoir included.

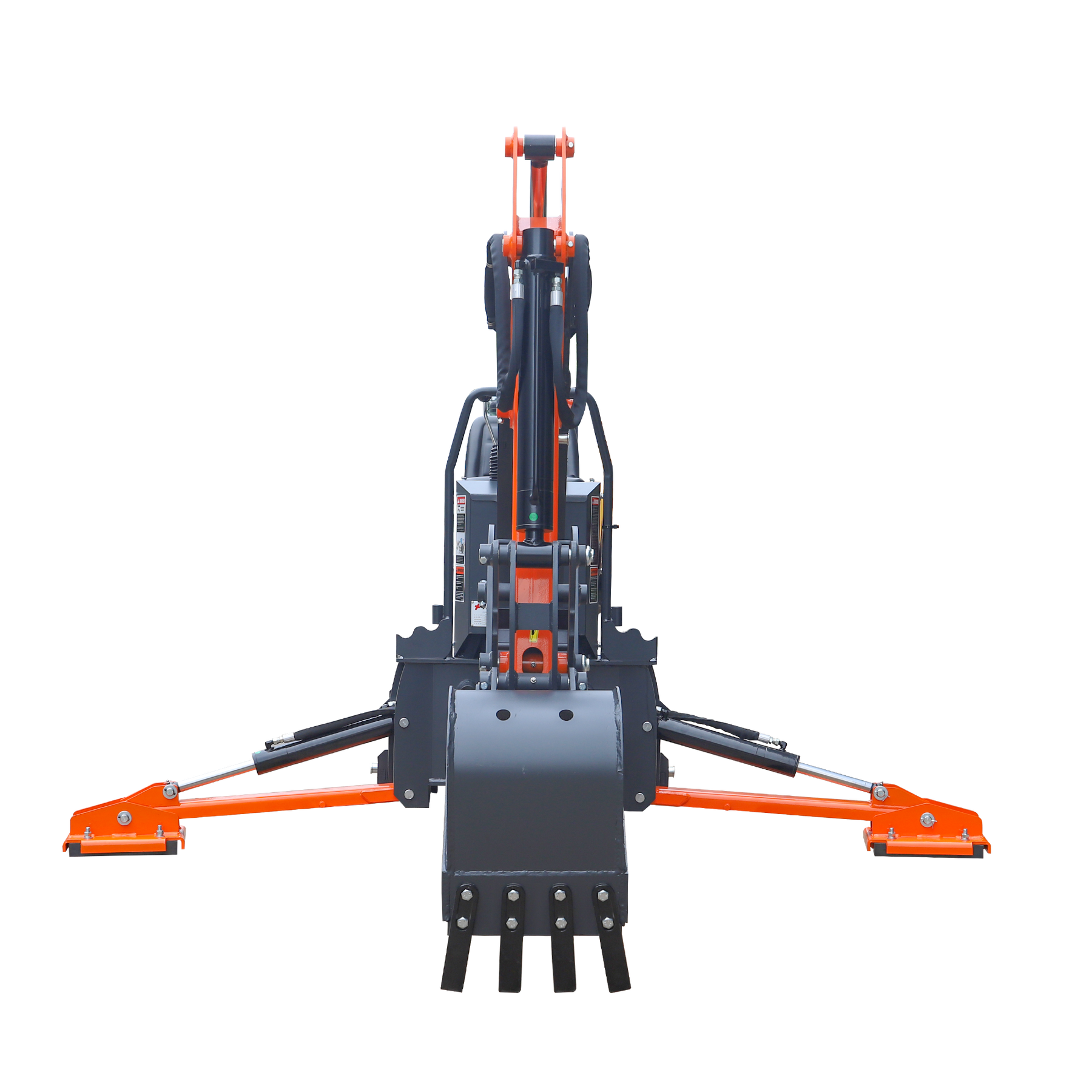

Front view of the Farmry BH820e 8'2" Tractor Backhoe with curved boom, 15" bucket, mechanical grapple thumb, and stabilizer arms. Orange/black design fits 30-65 HP tractors (Cat 1&2), includes gear pump and hydraulic reservoir.

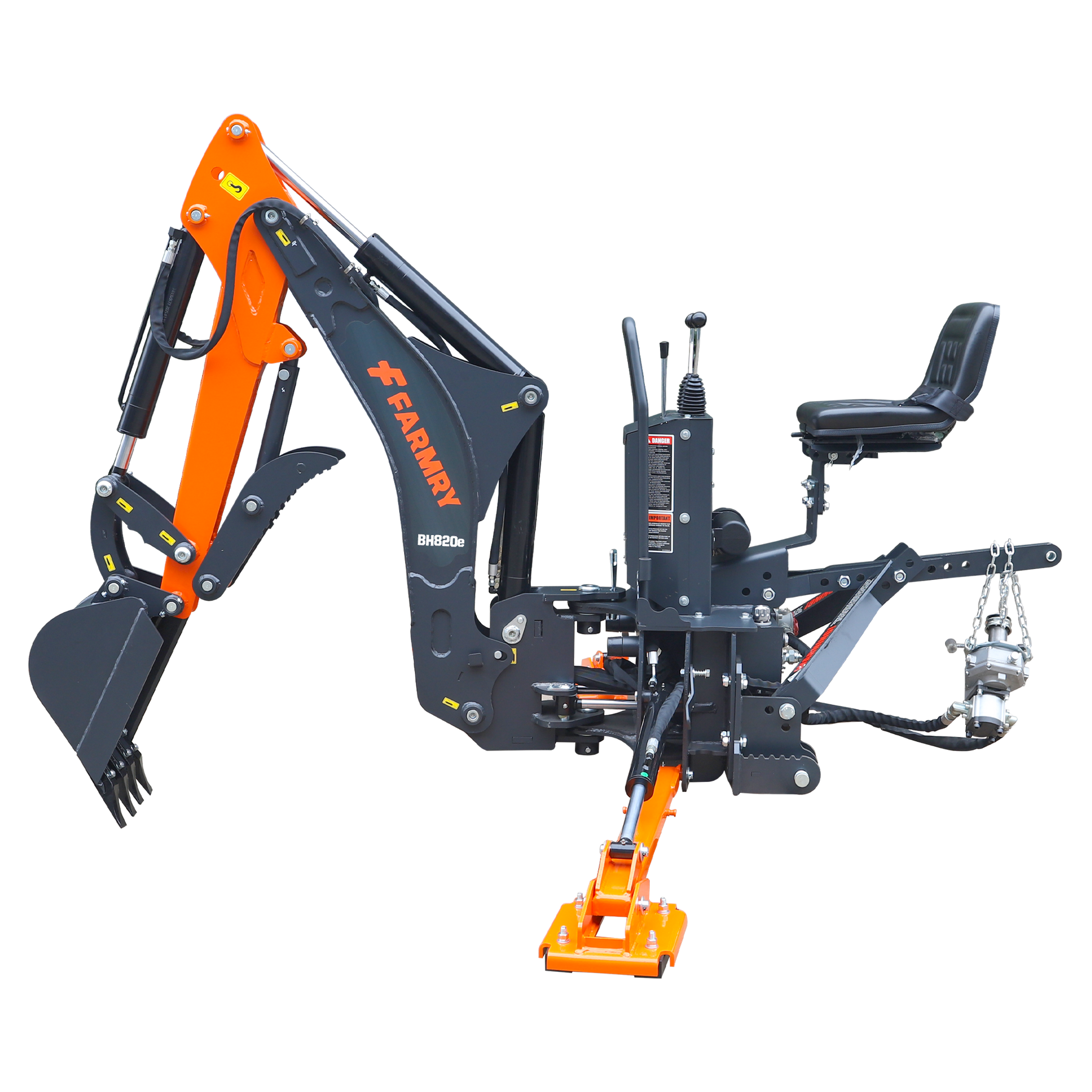

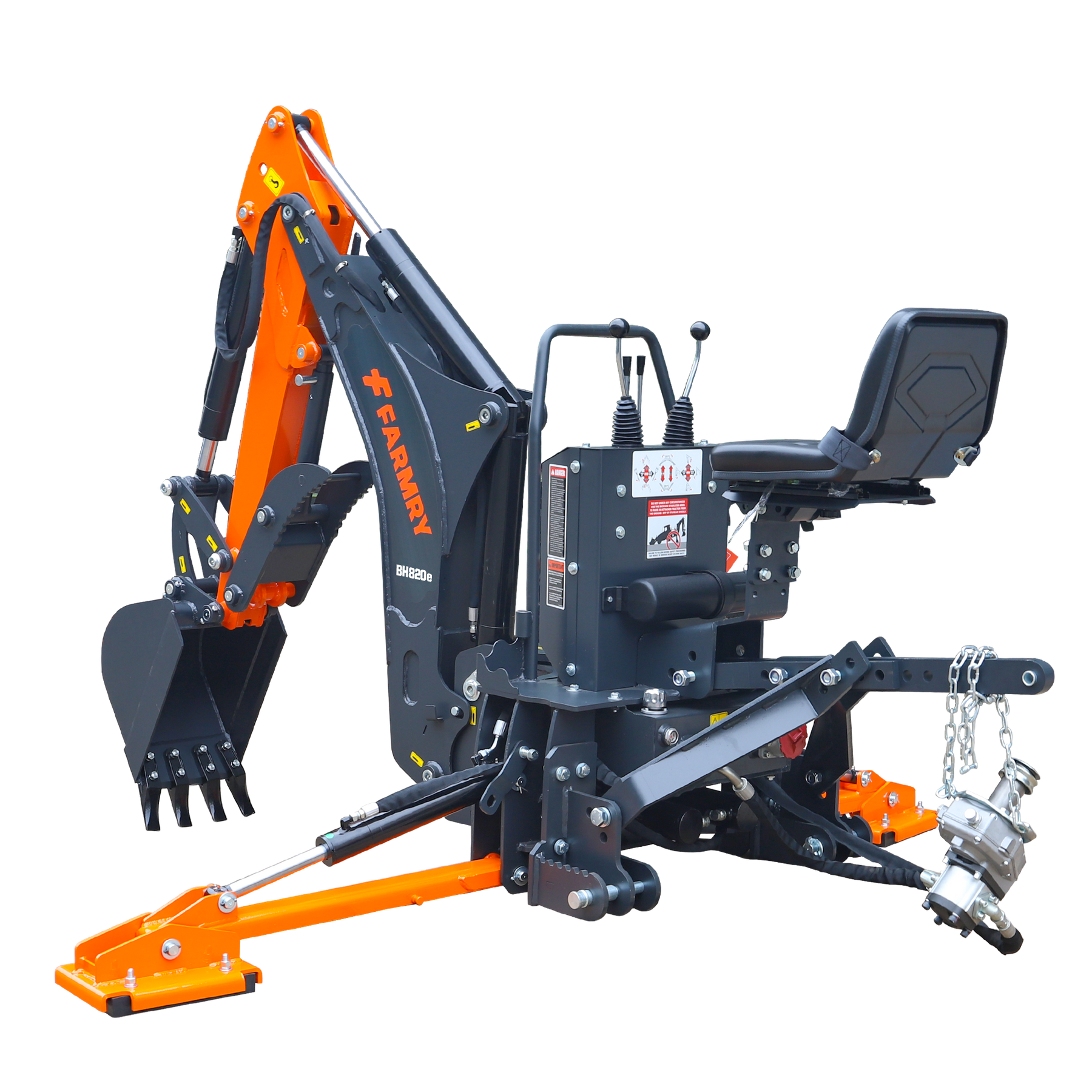

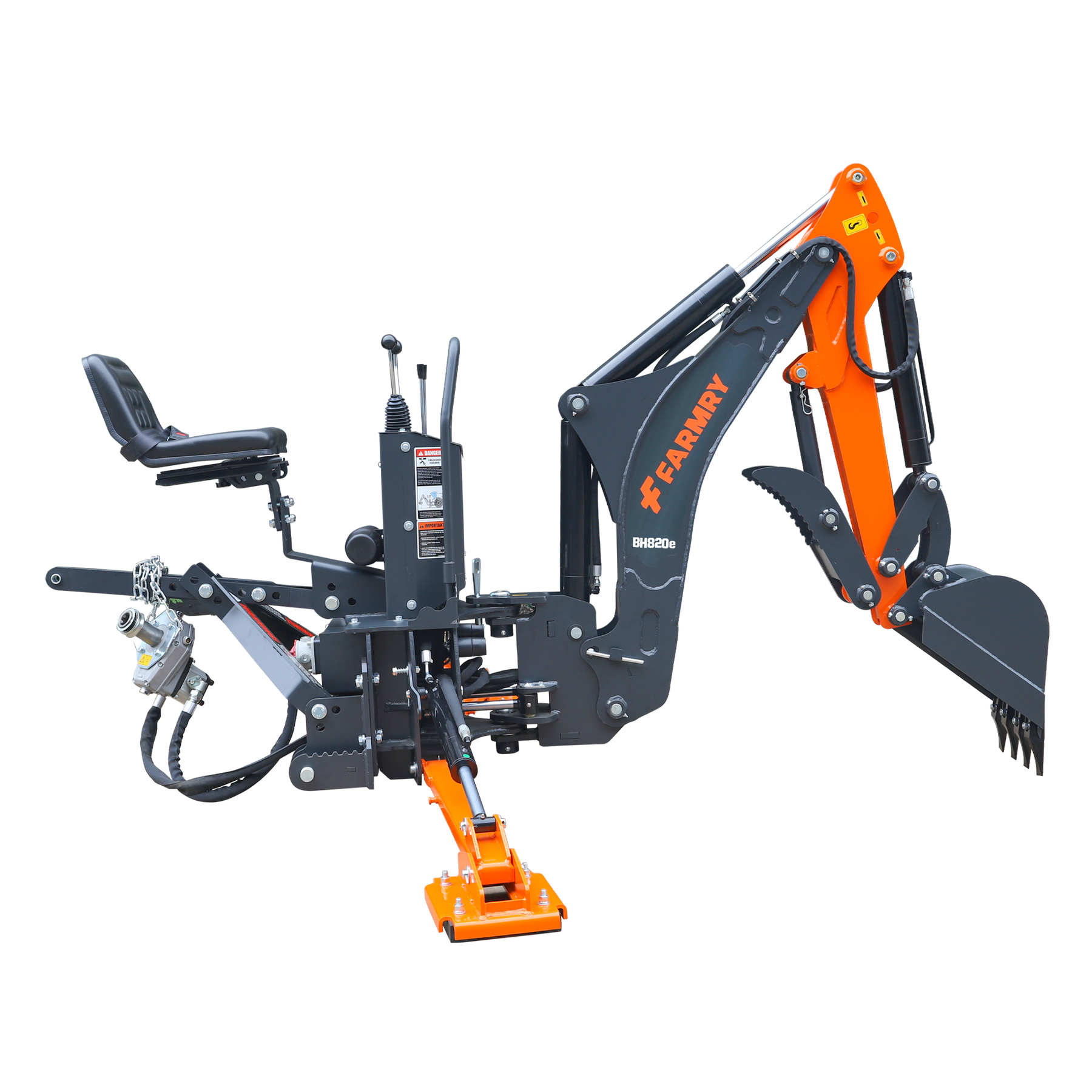

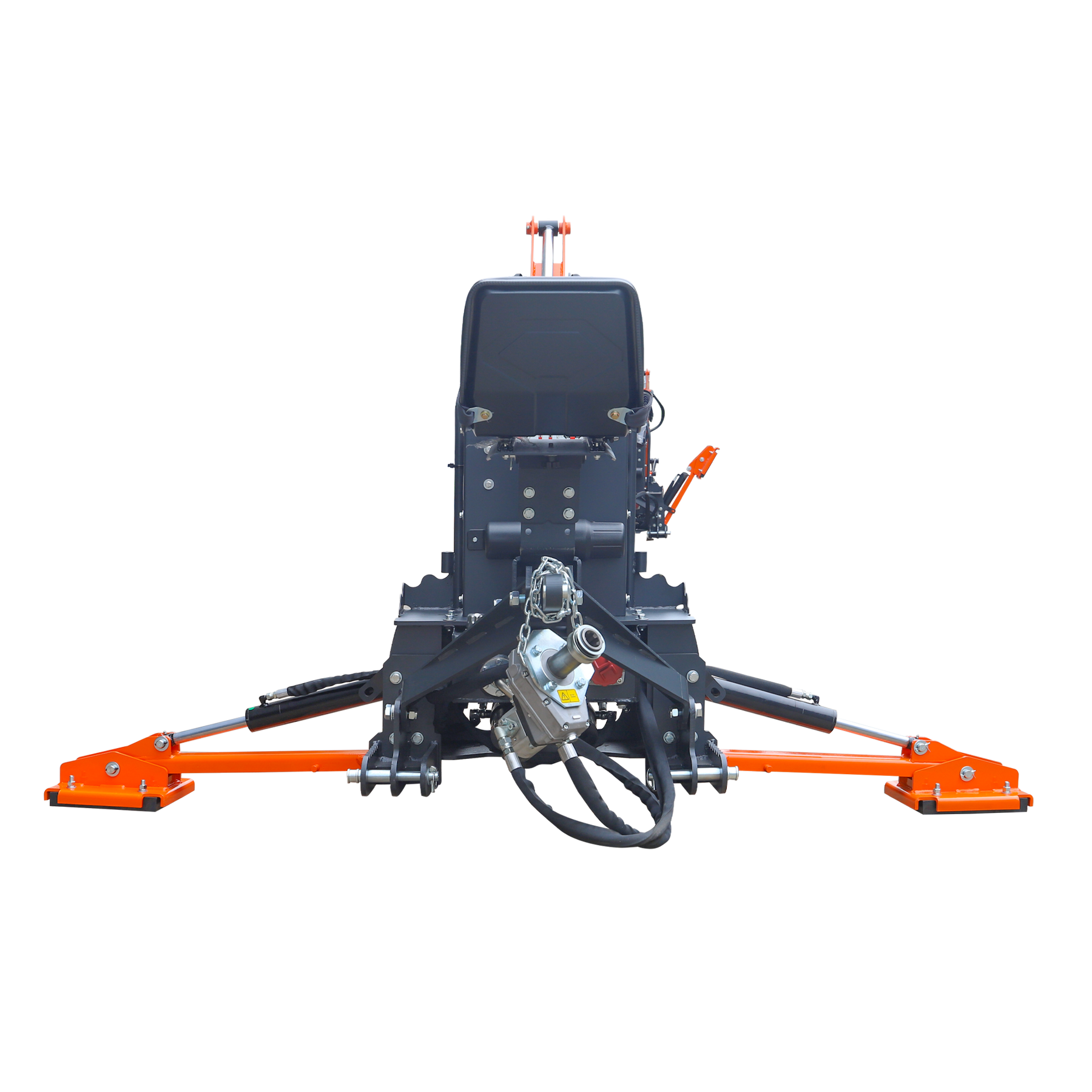

The Farmry BH820e is an 8'2" orange and black tractor backhoe with curved boom, 15" bucket, mechanical grapple thumb, self-contained gear pump & hydraulic reservoir, for 30-65 HP tractors, Cat 1&2 hookup.

+ Show More

SKU: 102113A | Model: BH820e

8'2" Tractor Backhoe with Curved Boom, 15" Bucket, Mechanical Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 30-65 HP, Cat 1&2 Hookup, BH820e

Name: 8'2" Tractor Backhoe with Curved Boom, 15" Bucket, Mechanical Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 30-65 HP, Cat 1&2 Hookup, BH820e
Brand: Farmry
SKU: 102113A
Price: 4899.0 USD
Availability: InStock
Rating: 4.8 (5 reviews)

$4,899.00

$6,099.00

Save $1,200

FREE SHIPPING

EST. 11-14 Business Days Delivery

Learn More

Digging depth: 8'4"

8'4" 7'

Availability: In Stock

Payment:

In Stock — leaves warehouse within 48 hours. Reserve Yours Now.

Ships from U.S. Warehouses Learn More

12-Month warranty included

4.6★ Verified Customer Reviews

U.S.Based Support

Product Overview

Designed for 30-65HP tractors, this compact 3-point linkage backhoe has a 8′4″ max digging depth and optional additional compact bucket sizes. Its curved boom protects the backhoe from unnecessary damage and stops soil from falling back into the hole, while dual cylinders deliver strong, consistent movement across the full 180-degree range. All pivot points have greasable pins for easy maintenance, with main pivot points fitted with hardened steel bushings to reduce wear. Easy-to-use hydraulic stabilizers help prevent tipping; replaceable bucket teeth let users quickly swap worn or damaged ones to resume work fast. When the boom swings to extreme ends, rubber pads cushion it to a controlled stop, and rubber footpads on stabilizers keep their teeth from tearing up driveways.

Product Manual

BH(S) Series Backhoe Product Manual 1.0

Product Features

Powerful Design

Farmry backhoe attachments are precision-engineered for optimal size-weight-power balance—light for easy on-site handling, setup, and repositioning, yet strong for trench digging and heavy debris moving. Contrary to the "heavier = more durable" myth, excess weight strains tractor frames, accelerating wear.
Farmry boosts performance with CNC laser-cut components (precise fit), precision welding (uniform strong bonds, no weak points), and optimized structural design (even load distribution). This premium build delivers ideal weight-rigidity balance, protecting tractors while maintaining toughness for long-term reliability.

Three-Point Hitch

You can easily convert your tractor into a backhoe using a straightforward 3-point hitch mounting setup—and this 3-point hitch further leverages your tractor’s draw bar to boost overall rigidity, ensuring stable operation.

Curved Boom

A curved boom backhoe features an excavator-style curved boom that offers improved digging efficiency, greater clearance over obstacles, and better visibility of the trench and bucket compared to traditional straight booms. This design allows for deeper digging without damaging the excavation's edge and provides more clearance when loading trucks

Dual Swing Cylinders

The dual cylinders deliver strong, consistent movement across the full 180-degree range, letting you dig into even tight spots and dump dirt exactly where you need it

Hardened Steel Bushings

Backhoe pivot points (pins and pin bosses) wear under high loads, causing loose, rattling boom/dipper/bucket—a common issue for backhoes/excavators. Replacing only worn pins won’t restore performance—pin bosses wear too.
Farmry solves this with replaceable bushings pressed into pin bosses: swapping pins and bushings returns the backhoe to original condition, protecting your investment (no permanent boom slop without this feature). Ordinarily exclusive to standalone units, this feature is standard on all Farmry backhoe attachments.

Replaceable Teeth

Our bucket teeth allow you to swap out worn or damaged teeth and get back to work as soon as possible.
PICTURE FOR REFERENCE ONLY

Swing Cushioning

When swinging the boom to the extreme ends, rubber pads cushioning gracefully brings the boom to a controlled stop. Thus, it can provide the maximum protection during the equipment's left-to-right operation.

Rubber Footpads

Keep the stabilizer teeth from tearing up your lawn, blacktop, and concrete.

Grapple Thumb (Mechanical）

The grapple thumb is highly versatile for handling rocks, tree limbs, and brush. The mechanical type demands manual positioning: the operator lowers the thumb and inserts a pin to lock it in place.

JIC Style Hose Fittings

JIC (Joint Industrial Council) style hose fittings boast a 5000 psi pressure rating. When hydraulic hose replacement is needed, these fittings are typically easy to source—plus, they eliminate the hassle of dealing with mismatched joint threads.

Smooth Hydraulic Controls

All Farmry backhoe attachments integrate a hydraulic pump and tank, eliminating reliance on the tractor’s hydraulics. This design delivers optimal flow/pressure at 540 RPM PTO for smooth valve operation, resolving compatibility issues of conventional models—due to varying tractor hydraulic specs, flow/pressure inconsistencies are common with traditional setups.
PICTURE FOR REFERENCE ONLY

specifications

Which One is Right for You?

POWER TYPE	FAMILY	PRODUCT	MIN HORSE POWER	CATEGORY	MIN TRACTOR / SKID STEER WEIGHT	MIN WHEEL BASE
PTO	600 SERIES	BH600	18	1	1800 lbs	57"
700 SERIES	BH700	25	1 or 2	2400 lbs	60"
BH700.PRO
BH700.E
820 SERIES	BH820	30	3000 lbs	70"
BH820.PRO
BH820.E
920 SERIES	BH920.PRO	45	2	4000 lbs	77"
Skid Steer	700 SERIES	BHS700.PRO	30	Skidsteer Mount	2600 lbs	NA
820 SERIES	BHS820.PRO

Shipping Information

Warranty Information

Video

Reviews & Questions

Mounted the machine to my 50 HP tractor in a couple hours. Everything lined up correctly and the hoses were long enough without having to reroute them. We’ve been opening drainage ditches on pasture land and it’s handled the workload just fine.

After looking at several brands, I went with the BH820E because of the build quality and warranty. We dug out an old water line and replaced it in a single afternoon. The machine stayed stable and didn’t leak a drop of hydraulic fluid.

The BH820E has good digging power for the size. I like that the controls are predictable without lag. It did struggle a little in very wet clay, but that’s expected around here. Still finished the job without problems.

I use the machine for trenching and for clearing small stumps. It is built heavy in the right places and hasn’t shown any leaks. Shipping was quick and the machine came well-protected. Nothing fancy, just solid equipment.

I chose the machine because I needed more reach and a stronger boom. It made quick work of clearing brush and installing new fence posts. The hydraulic response is easy to control, even for someone who isn’t a professional operator. Everything arrived in good shape.

Backhoe for 30–65 HP Tractors for Trenching and Property Work

This backhoe for 30-65 hp tractor is built for reliable digging, trenching, and everyday property maintenance. With an 8'4" digging depth, it’s well suited for jobs like drainage ditches, planting, and utility trenching.

Designed for tractors in the 30 to 65 hp range, this compact backhoe attachment gives you the flexibility to handle real excavation tasks without stepping up to a dedicated excavator. Its rear-mounted design keeps the attachment stable while allowing effective operation even in tight spaces.

PTO-Driven Hydraulic Power for Smoother Operation

This tractor backhoe uses a pto driven hydraulic pump powered by the tractor’s pto, instead of relying on the tractor's hydraulic system. This helps deliver more consistent hydraulic pressure and smoother control during digging and trenching.

The three point hitch mounting system keeps the unit stable and easy to install on compatible tractors equipped with PTO. Together, this setup improves overall operation, reduces compatibility issues, and ensures more predictable performance across different machines.

Built for Control, Durability, and Long-Term Use

This backhoe attachment is designed for consistent control and long term reliability in real working conditions. The curved boom improves visibility and efficiency, while dual cylinders provide a full 180-degree swing arc for accurate bucket placement.

Key wear areas are reinforced with greasable pivot points and replaceable bushings, helping maintain performance over time. Hydraulic stabilizer legs add balance during operation, while replaceable bucket teeth make ongoing digging work easier to maintain.

These features work together to deliver dependable performance across a wide range of excavation and landscaping tasks.

FAQs

Is this backhoe attachment compatible with all 30–65 HP tractors?

This model is designed for most tractors equipped with a 3 point hitch and a working tractor’s pto within the 30 to 65 hp range. Always confirm your tractor’s PTO and mounting compatibility before use.

What is the maximum digging depth of this backhoe?

This tractor backhoe offers an 8'4" digging depth, making it suitable for trenching, drainage work, planting, and general excavation tasks.

Does this backhoe use the tractor’s hydraulic system?

No. It uses a pto driven hydraulic pump, powered by the tractor’s pto, which helps provide stable hydraulic pressure and smoother control during operation.

What are the benefits of the curved boom design?

The curved boom improves visibility, increases clearance, and helps reduce soil falling back into the trench, making digging more efficient.

How do replaceable bushings and pivot points improve durability?

Greasable pivot points and replaceable bushings reduce wear in high-stress areas, helping maintain tight operation and extend the life of the backhoe.

How to check if the PTO extender needed or not if purchasing tractor powerer backhoe?

For the backhoe models compatible with certain tractor versions (BH600, BH600 PRO, BH700, BH700 PRO, BH820, BH820 PRO, BH920, and BH920 PRO), interference may occur during installation between the PTO pump and the tractor, preventing full engagement with the tractor’s PTO shaft (see left figure below).
When purchasing the above models, please pay close attention to the following:

1. Ensure there is sufficient clearance around your tractor’s PTO shaft (as shown in the right figure below, with a dimension of 7-3/4").

2. Please refer to the following dimensional specifications of the PTO pump to verify compatibility with the PTO shaft area on the rear of your tractor.

3. The PTO pump cannot be installed if any components are located within the shaded area of the pulley pump (dimensions: 160×224 mm / 6.3×8.8 inches) when mounting to the tractor’s PTO shaft area.
If insufficient clearance exists due to the above conditions, a PTO driveline extender will be required.(see above right picture)
This can be purchased on the Farmry website or at most agricultural equipment dealers.

Max Digging Depth	8'4"
Digging depth (2 ft. flat bottom)	8′2″
Overall Operating Height（Fully Raised）	116″
Reach from Swing POST	128″
Loading Height（bucket at 60°rotation）	71″
Transport Height（with boom fully retracted）	78″
Transport Overhang	50″
Ground Clearance	10.5″
Stabilizer Width	93″
Stabilizer Width（Transport）	65″
Engine HP Range（Tractor）	30-65 HP
Main Boom Cylinder Diameter	2.8"
Dipper Cylinder Diameter	2.8"
Bucket Cylinder Diameter	2.4"
Number of Swing Cylinder	2
Swing Cylinder Diameter	2.4"
Stabilizer Cylinder Diameter	2.0"
Tank Capacity	3.2 Gallon
Pump Flow Rate	6.9 GPM
Bucket Rotation	180°
Swing Arc	180°
Dipper Boom Digging Force	2120 lbs
Bucket Digging Force	3220 lbs
Weight W/bucket	1107 lbs
Shipping Weight	1312 lbs

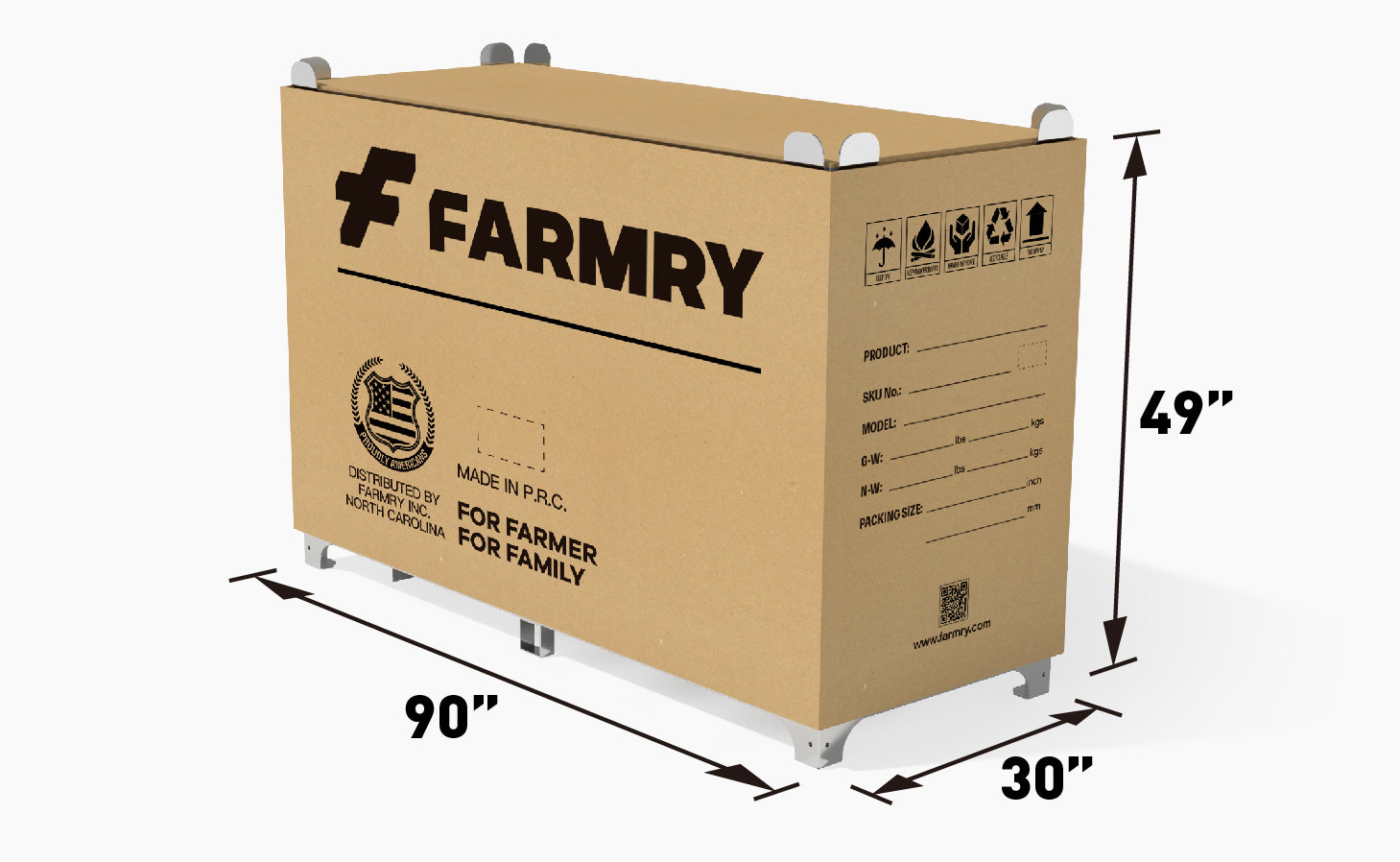

Transport Dimensions（L×W×H）	90″×30″×49″
Operating Pressure	2320 psi
Mounting System	3-point Hitch CAT.I/II
